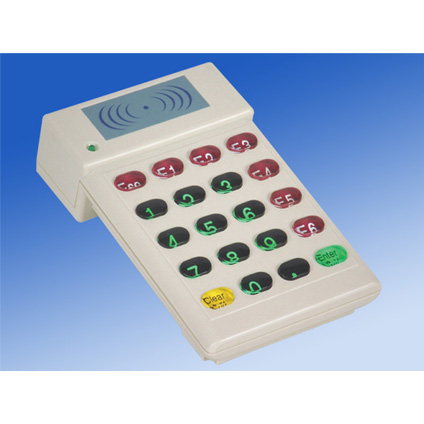

Product Name:ID card readerProduct Model:YLE-706
Product Description
1. Using plexiglass button, never worn.
2. Power is from the host computer, without external power supply.
3. LED and buzzer tweet directed to identify successful or unsuccessful readers. USB port, USB keyboard direct simulation methods. Does not affect the operation of a large keyboard. USB hassel technology uses a more simple, more stable.
4. Keyboard simulation interface can be equipped IBM PC / XT / AT and compatibles. Query machine installed in the
Between the keyboard and the computer, its functions fully simulated keyboard, and keyboard are not large Impact.
5. RS-232 serial output, with adapter cable to take power directly from the USB port, without external
Then the power, ease of use.
Product technology and indicators
1. ID card standards: 125KHz EM4100 or compatible with 64Bit Man Side Baptist encoding
2. Reading distance: ≥ 5cm
3. Supply Voltage: DC 5V ± 5%
4. Supply current: ≤ 65mA
5. Working Environment: Temperature: 0 ~ 45C
Humidity: 10 ~ 90% RH
